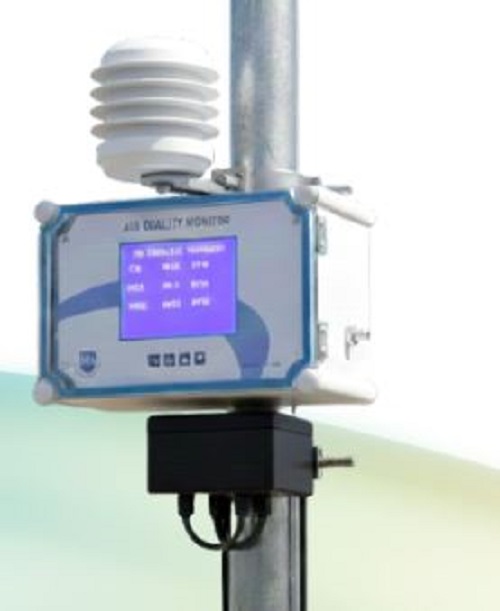

Ambient Air Quality Monitors AQ-150

Get a Price/Quote

MOQ : 1 Piece

Ambient Air Quality Monitors AQ-150 Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
10 Pieces Per Week

Delivery Time
3 Week

Main Domestic Market
All India

Certifications
CE

About Ambient Air Quality Monitors AQ-150

Ambient Air Quality Monitoring, AQ-150 is an ideal instrument that can be used to monitor particulate emissions from precipitators, cyclones, bag houses, or any dust control device. It can also be used to monitor quality of air in indoor workplaces, underground transportation systems, ventilation systems, or any other application where immediate data on dust, fume, smoke, or mists is required. AQ-150 is a beneficial instrument as it can prevent a problem to become a trouble.

AQ-150 uses an optical layout that comprises an infrared emitter and silicon detector. When particles enter the sensing area, an analog output, voltage, current gives a signal proportional to the particle concentration. It is possible to send the signal to a recorder or central processing panel. The users can mount AQ-150 on walls, inside air ducts or at strategic locations in dust control devices, like dust collector and bag house. The configuration of units can be done in a single or multipoint system.

Ambient Air Quality Monitoring- AQ-150 is ideal for companies that either generate or emit particulate matter, so that these companies can comply with Regulations.

Features of Ambient Air Quality Monitoring:

This light weight and durable instrument is easier to install
It is designed to perform fixed point monitoring.
It can provide either standard output of 4-20mA or optional 0-1V output
It comes with an adjustable alarm
It has a Graphic LCD Display with read out in mg/m³
It can be purchased with NEMA 4X housing or Explosion Proof Enclosure

Technical Specifications

Sensing Range	0.01-200 mg/m³ (standard) 0.1-2000 mg/m³ 0.001-20mg/m³ (optional),(for other, please contact HNL)
Particle size range	0.1-50 ¼m
Precision	+/- 0.02 mg/m³ or +/- 0.004 mg/m³
Power	110 or 220 V AC; 12 V DC wall transformer (optional)
Signal output	4-20 mA; 0-1 Volt (optional)
Alarm output	7 V DC
Operating temperature	0 - 65°c
Humidity	95% non-condensing
Dimensions	7.5" x 4.5" x 4" approx
Weight	2Kg

Technical Details

Advanced Digital Monitoring

Experience real-time air quality analysis with the AQ-150's digital-only display, providing clear and accurate readings of airborne contaminants. Designed for simplicity, the device ensures immediate and reliable results for onsite or remote monitoring.

Robust Build for Demanding Environments

With a powder-coated, resilient structure, the AQ-150 is built to withstand harsh conditions, making it perfect for industrial, urban, and laboratory settings. Maintenance is minimized while durability is enhanced, ensuring a long-lasting investment.

Wide Range and Precise Measurement

Measuring air pollutants in units of ug/m3 or ppm, the AQ-150 covers a comprehensive range suitable for diverse monitoring requirements. Its sensitivity and accuracy meet stringent regulatory standards, facilitating environmental compliance and workplace safety.

FAQ's of Ambient Air Quality Monitors AQ-150:

Q: How does the AQ-150 Ambient Air Quality Monitor work?

A: The AQ-150 uses advanced sensors to measure concentrations of pollutants in the air and displays the results digitally in either ug/m3 or ppm. Its user-friendly interface and fast response ensure reliable real-time air quality data.

Q: What are the main benefits of using the AQ-150 air quality monitor?

A: The AQ-150 offers precise digital readings, robust construction for longevity, and comprehensive measurement ranges, making it ideal for industrial, laboratory, and public space monitoring. It aids compliance with environmental regulations and promotes healthier environments.

Q: When should I use the AQ-150 for air quality monitoring?

A: You should use the AQ-150 whenever you need accurate assessments of ambient air, such as during industrial operations, environmental assessments, or workplace safety checks. It is especially valuable in areas where air quality may fluctuate or pose health risks.

Q: Where can the AQ-150 be installed for optimal results?

A: The AQ-150 is suitable for use in industrial plants, laboratories, commercial buildings, and outdoor urban environments. Installation should be in locations where representative air samples can be collected, away from direct pollutant sources for unbiased readings.

Q: What is the process for installing the AQ-150 air quality monitor?

A: The AQ-150 operates with a standard 230 V AC, 50 Hz power supply. Simply mount the unit at a selected monitoring location, connect to the power source, and follow the included instructions to initiate calibration and measurement procedures.

Q: How is the display information presented on the AQ-150?

A: Results are shown exclusively via a digital display, providing crisp and clear information in selected measurement units (ug/m3 or ppm). This allows for quick data interpretation and easy tracking of air quality changes over time.

Q: What makes the AQ-150 suitable for export and industry use?

A: Manufactured and exported from India, the AQ-150 meets international quality standards, boasting durability, reliability, and versatile applicability in various sectors. Its robust powder-coated design and straightforward operation make it a preferred choice for global users.
